Addition of wifi with RASPBERRY PI
As you may know, the Raspberry Pi can only access your home network using a network cable. But let us face it, your Raspberry Pi project is not always going to be deployed close to a network outlet – so what do we do?
The best solution is to buy a cheap USB WiFi adapter and use one of the USB ports to access our wireless home network. Setting up a Raspberry Pi using the Raspbian OS to access your wireless network is easy – this guide will guide you through the process.
You are going to need the following:
· A Raspberry Pi
· A USB WiFi Adapter
· An SD Card flashed with the Raspbian OS
· Access to the Raspberry either via keyboard and a monitor.
NOTE*: it is very important to buy a WiFi Adapter that mentions “Linux” in the product description or package.
Plug the USB WiFi adapter into one of the free USB ports on the Raspberry Pi. Power up the Raspberry Pi – remember at this point the WiFi adapter does not work yet. You are still going to need some other means of being able to control the Raspberry Pi either via a keyboard.
After booting and logging in you want to make sure that the Raspberry Pi found your new wireless adapter. To look at which peripherals the operating system found when booting run the following command:
dmesg | more
You can use the spacebar to scroll down a page at a time – towards the end you will see something similar to the following lines,
[ 3.282651] USB 1-1.2: new high-speed USB device number 4 using dwc_otg
[ 3.394810] USB 1-1.2: New USB device found, idVendor=7392, idProduct=7811 [ 3.407489] USB 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber =3
[ 3.420530] USB 1-1.2: Product: 802.11n WLAN Adapter
This means that the operating system recognized the USB WiFi Adapter using one of the built-in drivers (you can return to the terminal by pressing “q”). All that is left is to configure your WiFi connection.
Configuring the WiFi network

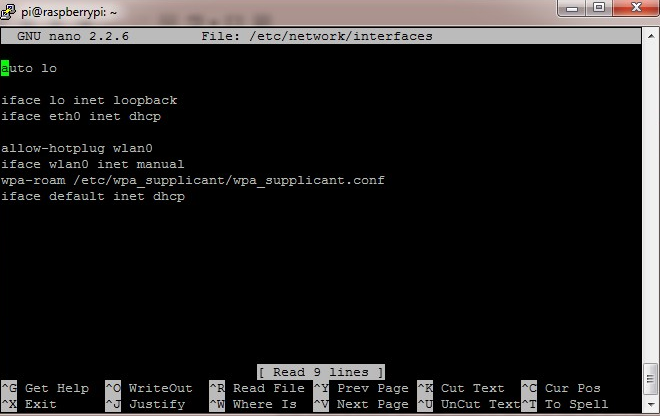

On the Raspberry Pi (and on Linux in general) you configure your network settings in the file “/etc/network/interfaces”. You can edit this file using the following command:
sudo nano /etc/network/interfaces.
This will open the file in an editor called nano it is a very simple text editor that is easy to approach and use; even for users not familiar with Linux based operating systems just use the arrow keys.
To configure your wireless network you want to modify the file such that it looks like the following:
auto lo
iface lo inet loopback iface eth0 inet dhcp
allow-hotplug wlan0 auto wlan0
iface wlan0 inet dhcp
wpa-ssid "Your Network SSID" wpa-psk "Your Password"
You will need to put your own SSID and password into the appropriate places. If you can’t remember your network name – just pull up your phone it will most like display the name in the settings or network settings screens.

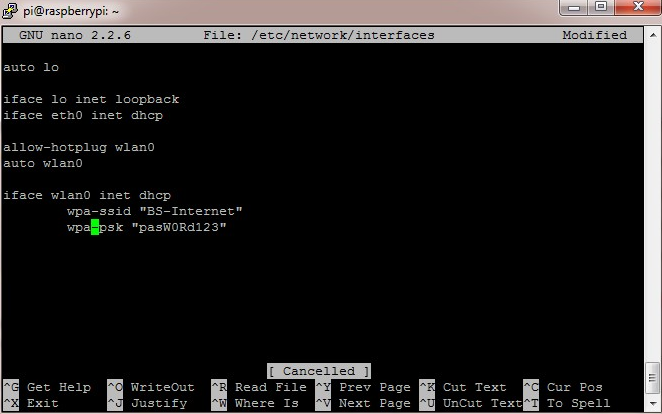

After editing the file you should see something like the following:
To save the file press Ctrl+O this will write the file to the disk – afterward you can exit nano by pressingCtrl+X. If nano asks if you want to Save modified buffer? press “Y” followed by hitting enter to confirm the filename.
At this point everything is configured – all we need to do is reload the network interfaces. This can be done by running the following command (warning: if you are connected using a remote connection it will disconnect now):
sudo service networking reload
After reloading the network interface (and re-connecting to the pi if you are using a remote connection) – you can now check the status of our WiFi connection by running:
ifconfig
The result should look something like this:
wlan0 Link encap:Ethernet HWaddr 80:1f:02:aa:12:58
inet addr:192.168.1.8 Bcast:192.168.1.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:154 errors:0 dropped:173 overruns:0 frame:0 TX packets:65 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000
RX bytes:32399 (31.6 KiB) TX bytes:13036 (12.7 KiB)
If you see a valid IP address under “inet addr” you can now disconnect the network cable, and enjoy your freedom to move your Raspberry Pi around – because the WiFi connection is up and running!
CREDITS:S.E.ARUN
